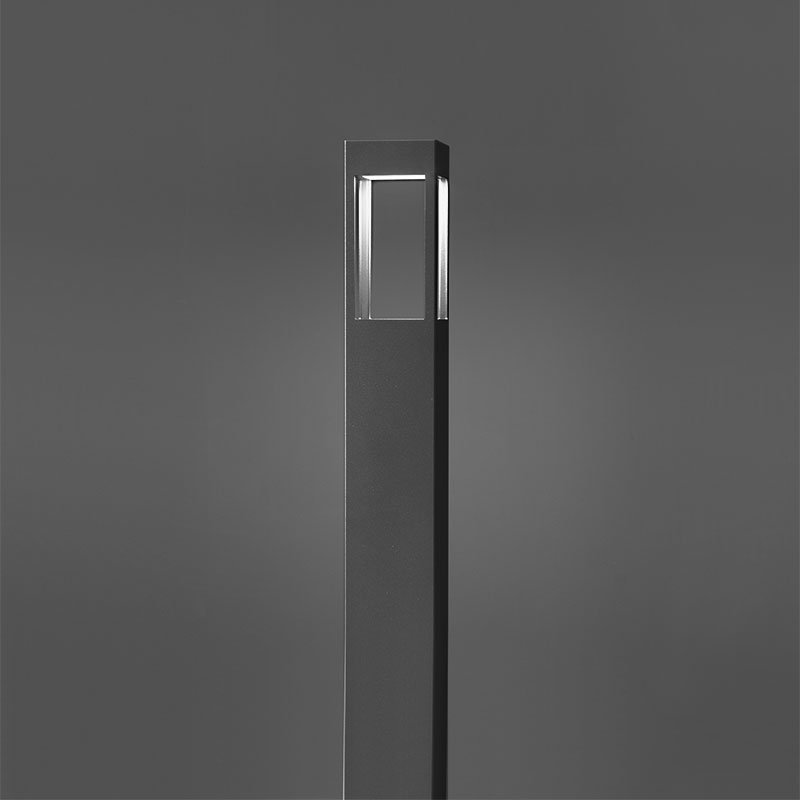

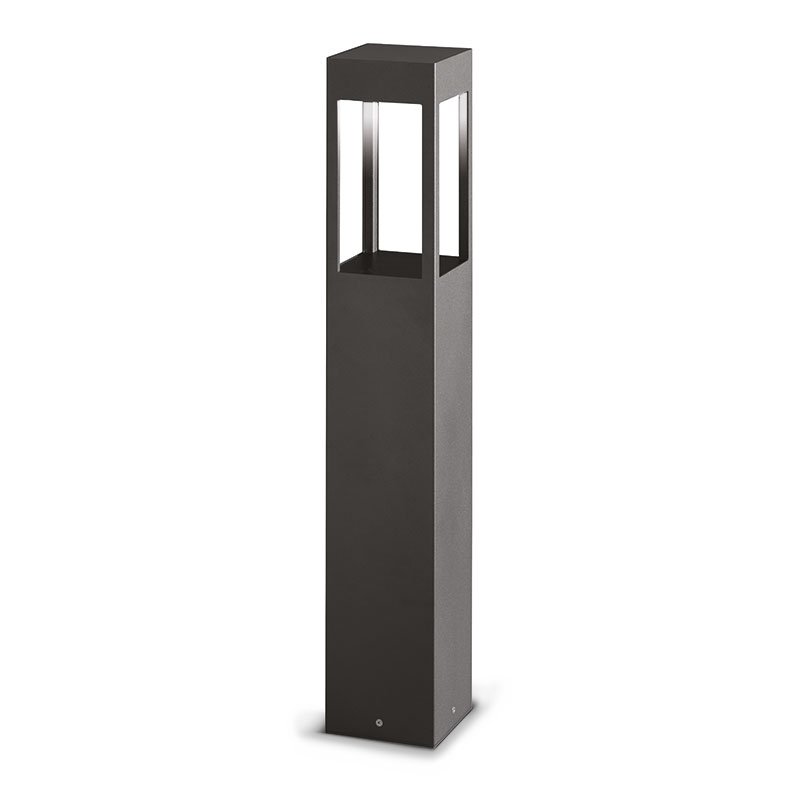

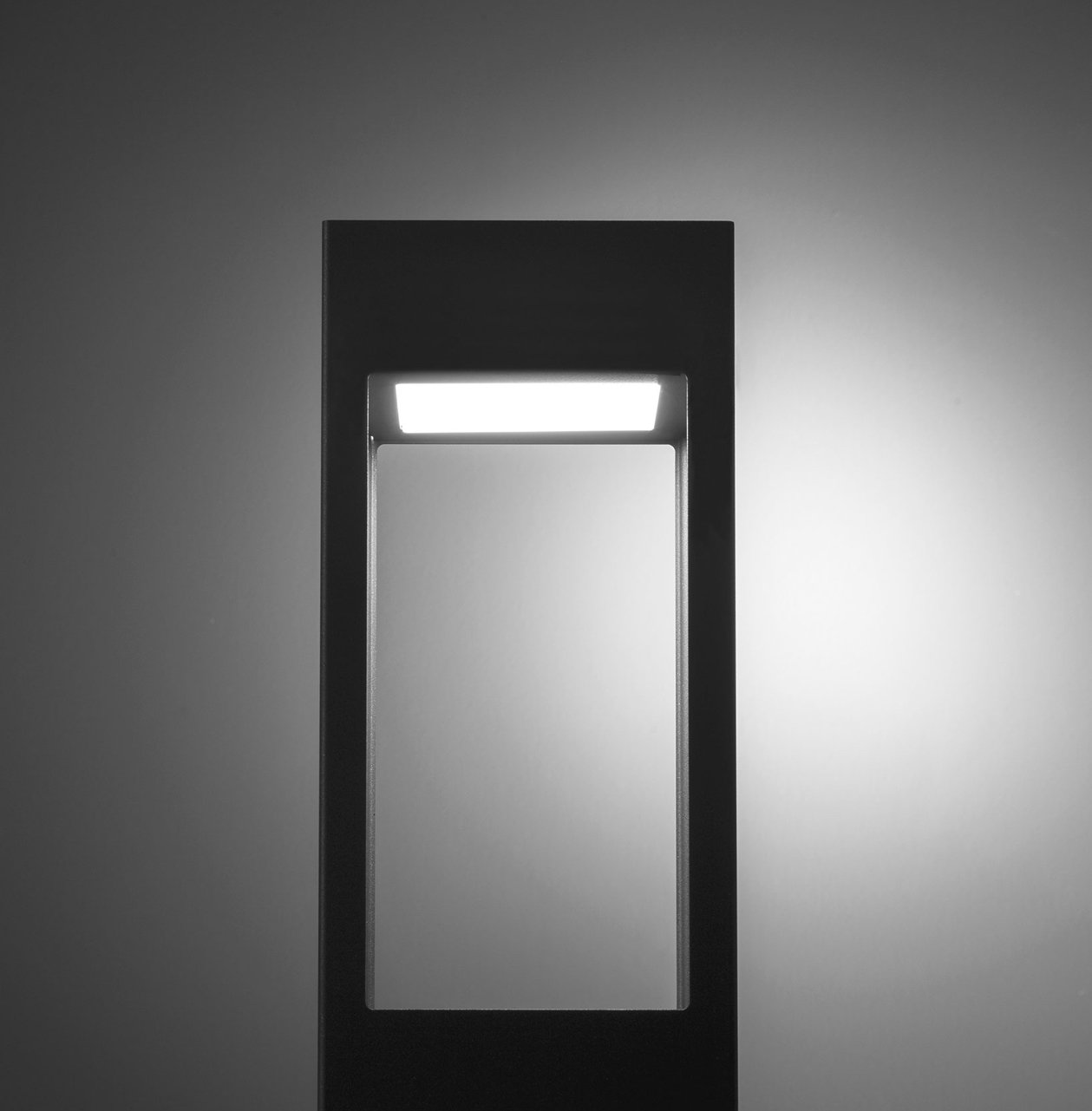

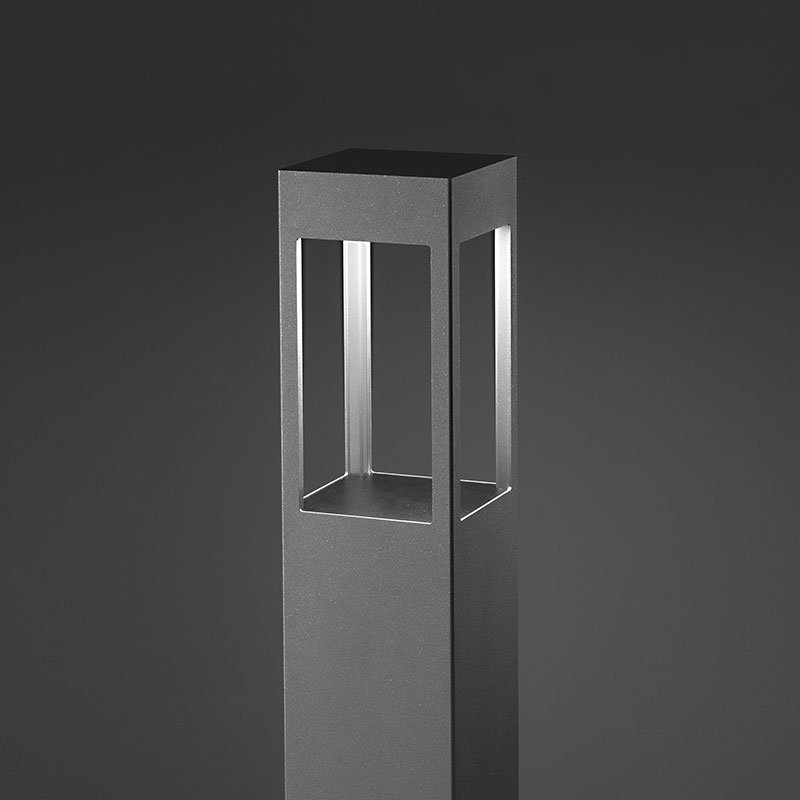

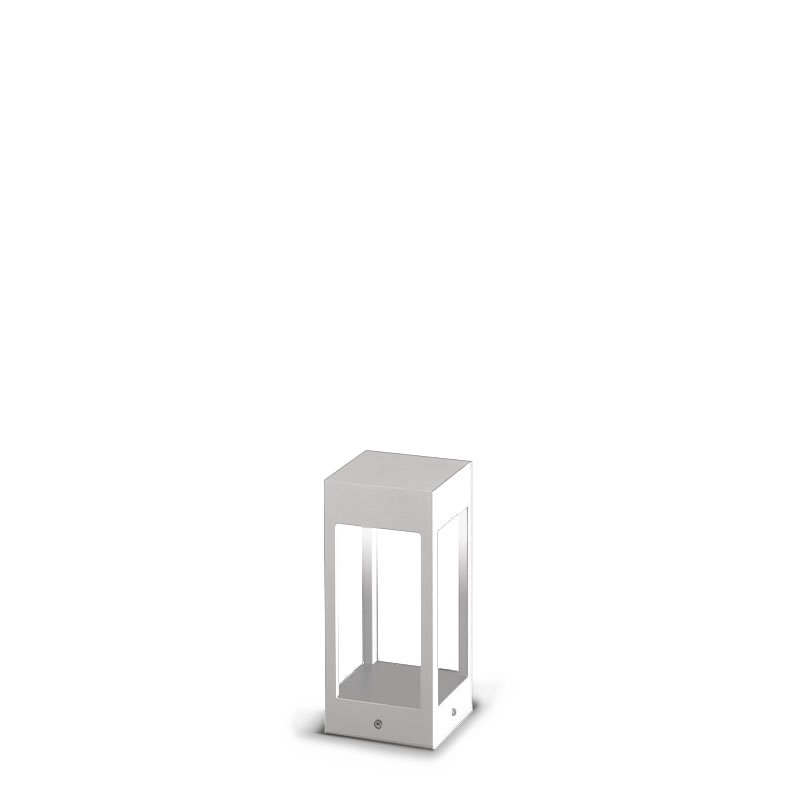

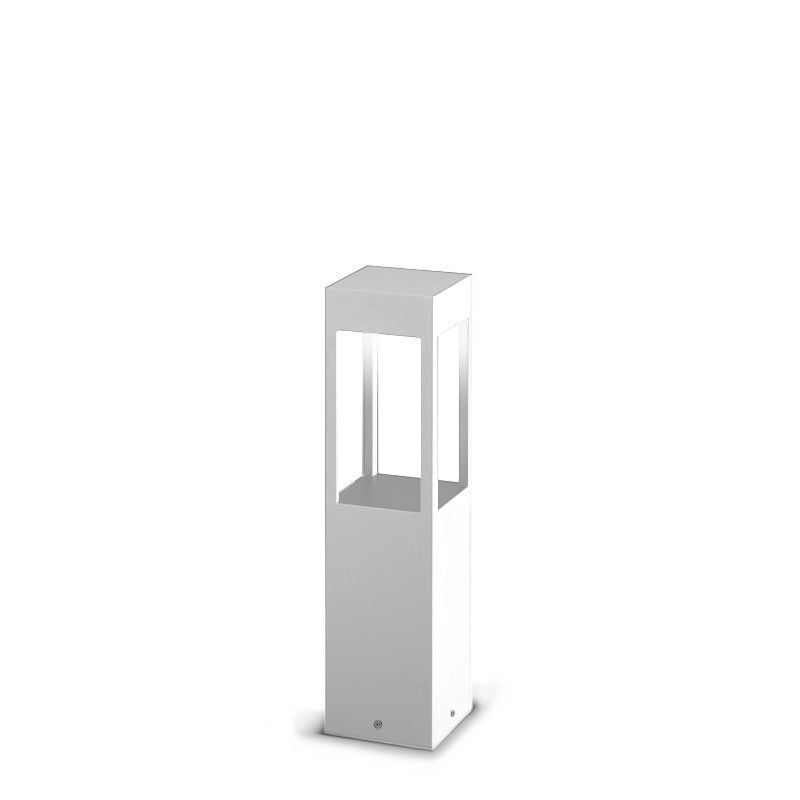

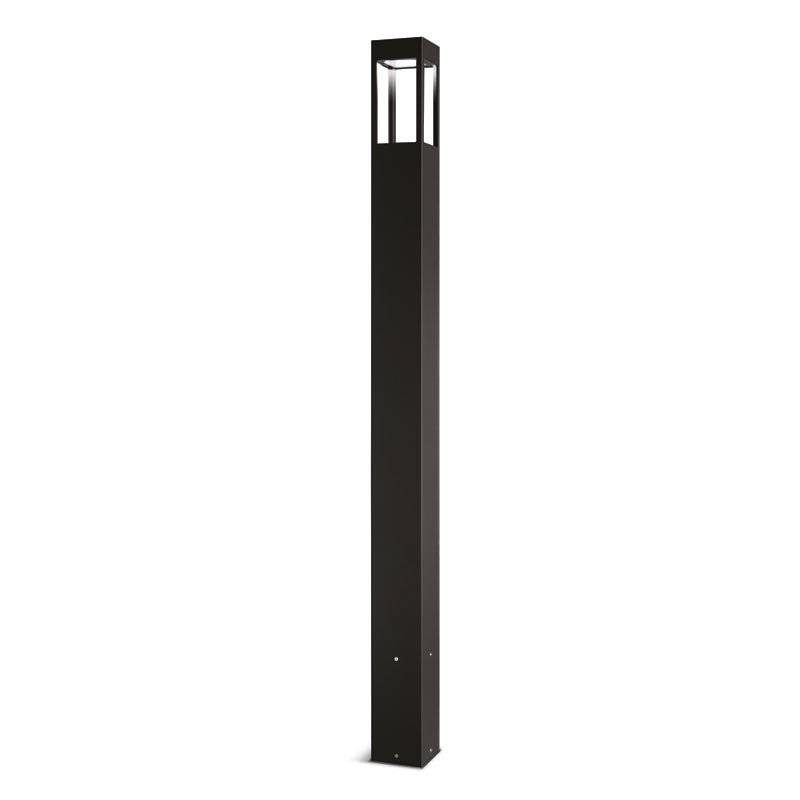

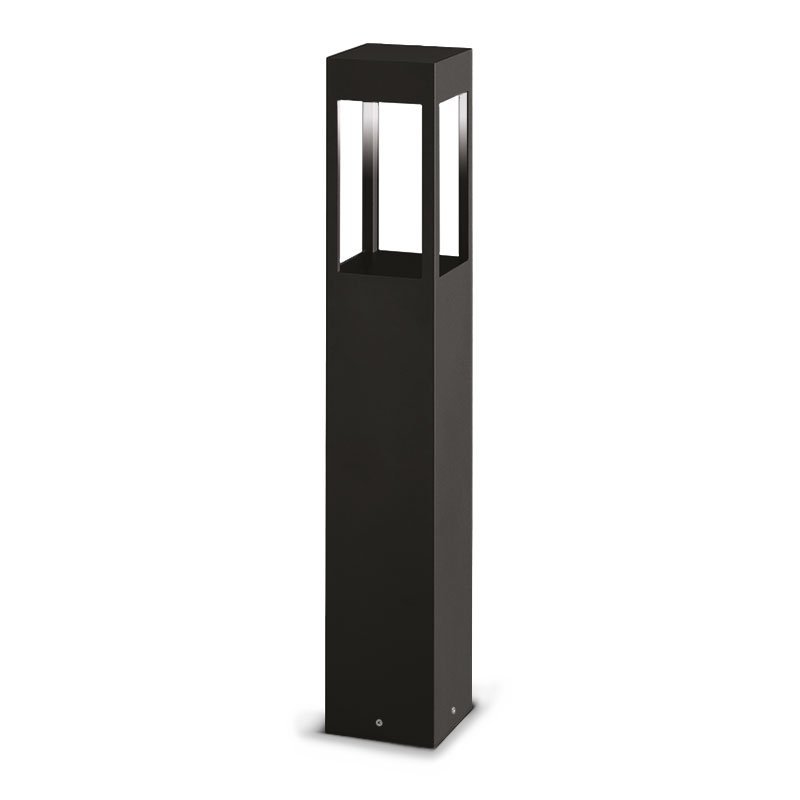

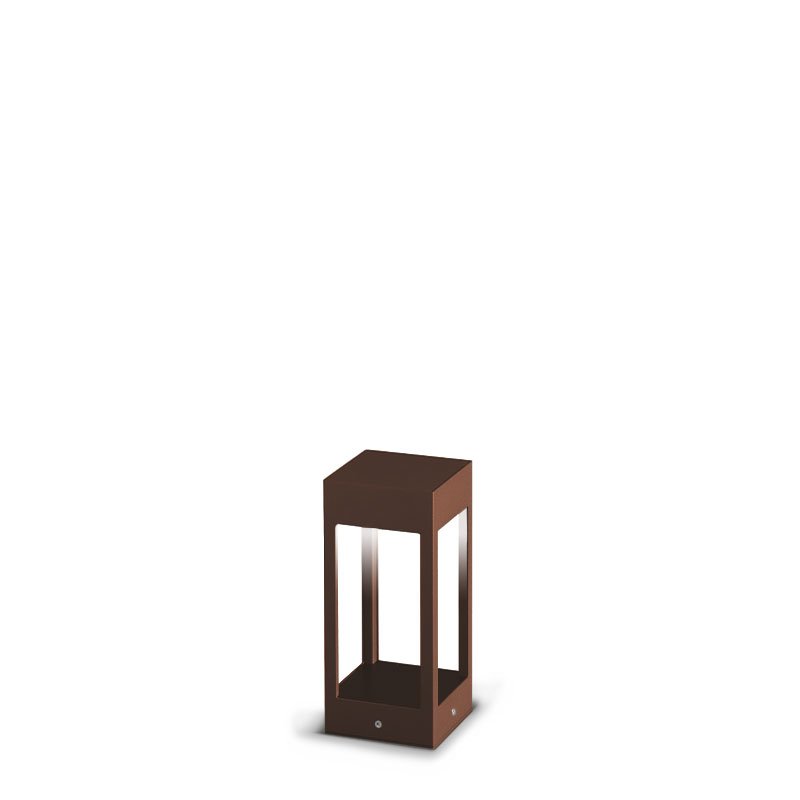

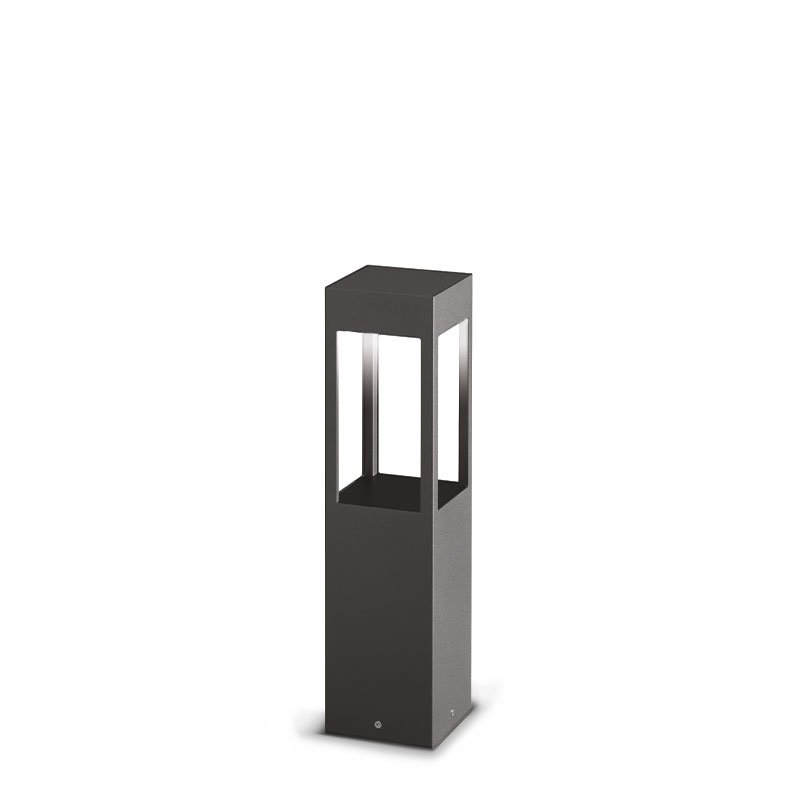

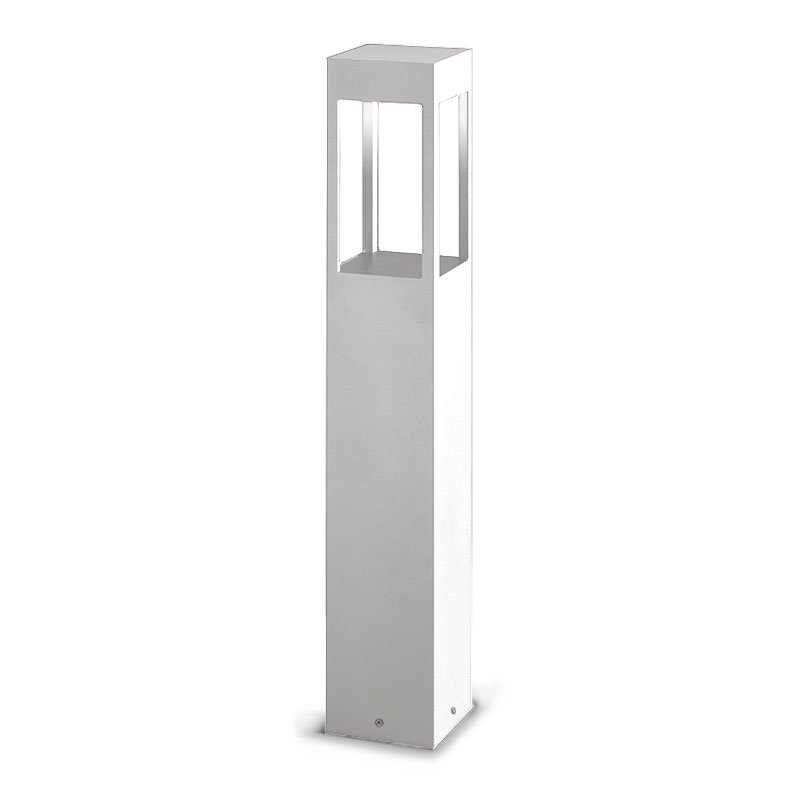

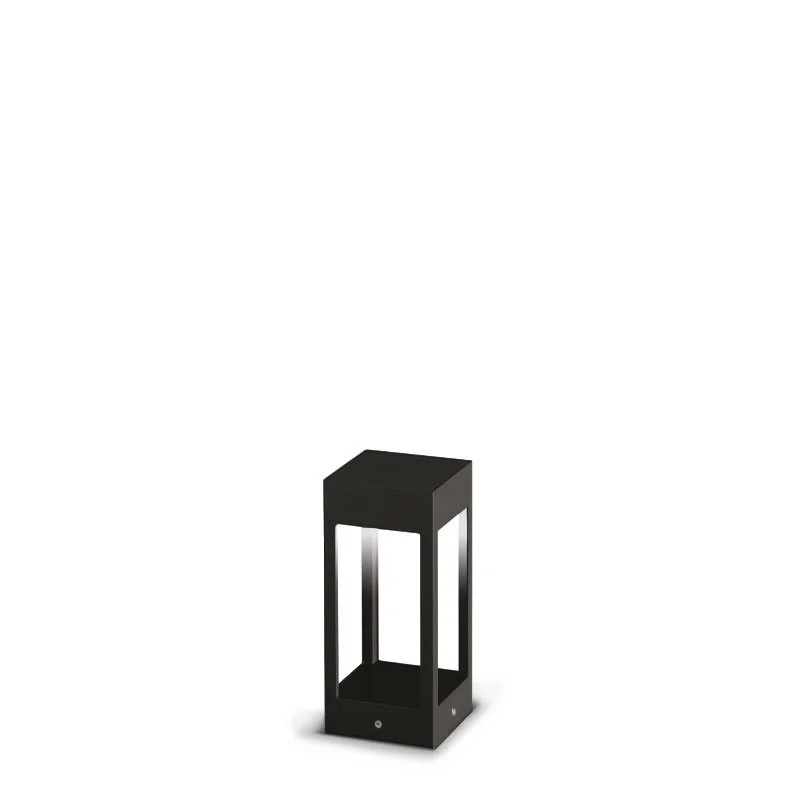

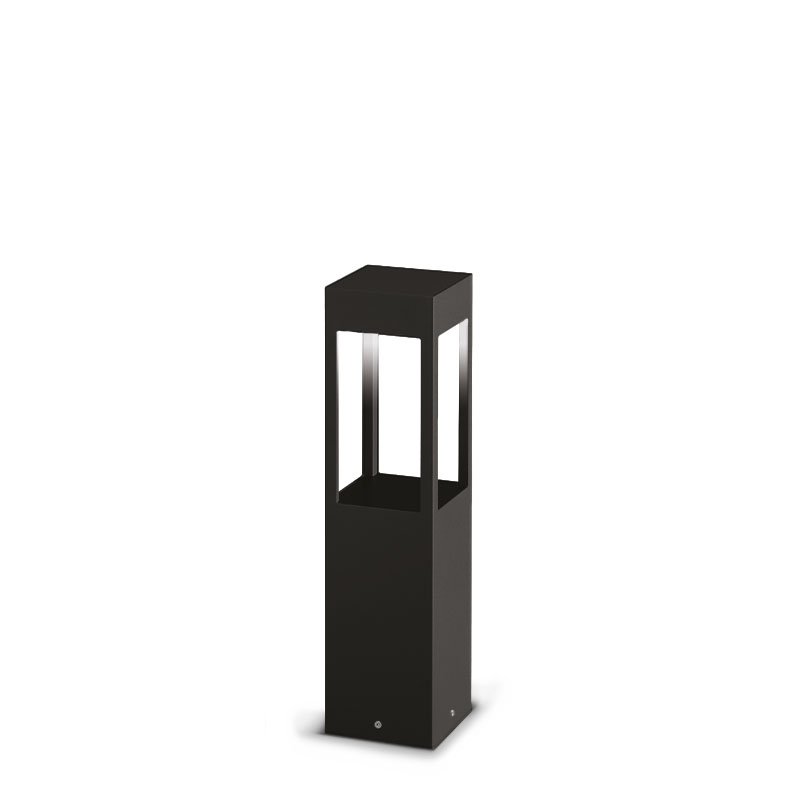

I-Lantern | Outdoor bollard lighting collection
Technology & Soul.
Gardens, walkways, arcade, tables. Thanks to the completeness of the range, with I-Lantern an entire outdoor context can be illuminated with aesthetic consistency and high performance.
An interactive cage to seize the light and protect it, also via Bluetooth, for floor, wall and ground installations.
New iconic product is characterised by a strong personality, a direction of light with a powerful heart. An aesthetic fusion living parallel with a minimal design to provide a wide range of possible installations.
A complete family: I-Lantern is available for wall, standing, bollard and pole applications.
Technology & Soul.
Gardens, walkways, arcade, tables. Thanks to the completeness of the range, with I-Lantern an entire outdoor context can be illuminated with aesthetic consistency and high performance.
An interactive cage to seize the light and protect it, also via Bluetooth, for floor, wall and ground installations.
New iconic product is characterised by a strong personality, a direction of light with a powerful heart. An aesthetic fusion living parallel with a minimal design to provide a wide range of possible installations.
A complete family: I-Lantern is available for wall, standing, bollard and pole applications.
Technology & Soul.
Gardens, walkways, arcade, tables. Thanks to the completeness of the range, with I-Lantern an entire outdoor context can be illuminated with aesthetic consistency and high performance.
An interactive cage to seize the light and protect it, also via Bluetooth, for floor, wall and ground installations.
New iconic product is characterised by a strong personality, a direction of light with a powerful heart. An aesthetic fusion living parallel with a minimal design to provide a wide range of possible installations.
A complete family: I-Lantern is available for wall, standing, bollard and pole applications.
Materials
Body Die-cast aluminium EN47100 and extruded aluminium EN AW6060
Diffuser Opal polycarbonate
Finishing Polyester powder paint
Technical specifications
Source lamp LED 10 W, or 24W for 200 cm
Total wattage 12.5 W, or 26W for 200 cm
Voltage 220-240 Vac - 50/60 Hz
Control On/Off
Luminous flux (*Source flux) 600 lm (1360 lm*) @ 3000 K, or 1170 lm (2780 lm*) for 200 cm
Luminous efficacy 48 lm/W @ 3000 K, or 45 lm/W @ 3000 K For 200 cm
McADAM steps 3
Beam diffuse
CRI >90
Life time
L 70 > 50.000 h Ta 25°C
L 70 > 50.000 h Ta 40°C
IP rating 65 Luminaire dust-tight and protected against water jets
IK rating 8 Luminaire protected against an impact energy of 5 Joules
Insulation class I Luminaire with basic insulation. Protection: connection of the accessible metal parts to the earthing protection.
